GSM Cellular Modem and industrial Router

GSM cellular modems are set in for all industrial applications and are representing the base for wireless M2M communication for telemetry and telematics. The modem terminals can be used worldwide, because of the quadband technology. Our LTEUMTS and GPRS modems are available in different variations and can be used for:

  • Send and receive data packets
  • SMS Gateway
  • Point-to-point connection (CSD)
  • Can be used in places without a telephone connection
  • Cost-effective billing by data plan


  • Wireless M2M communication
  • Remote control of plants and machines
  • Fault messaging and plant monitoring
  • Remote reading of operating status

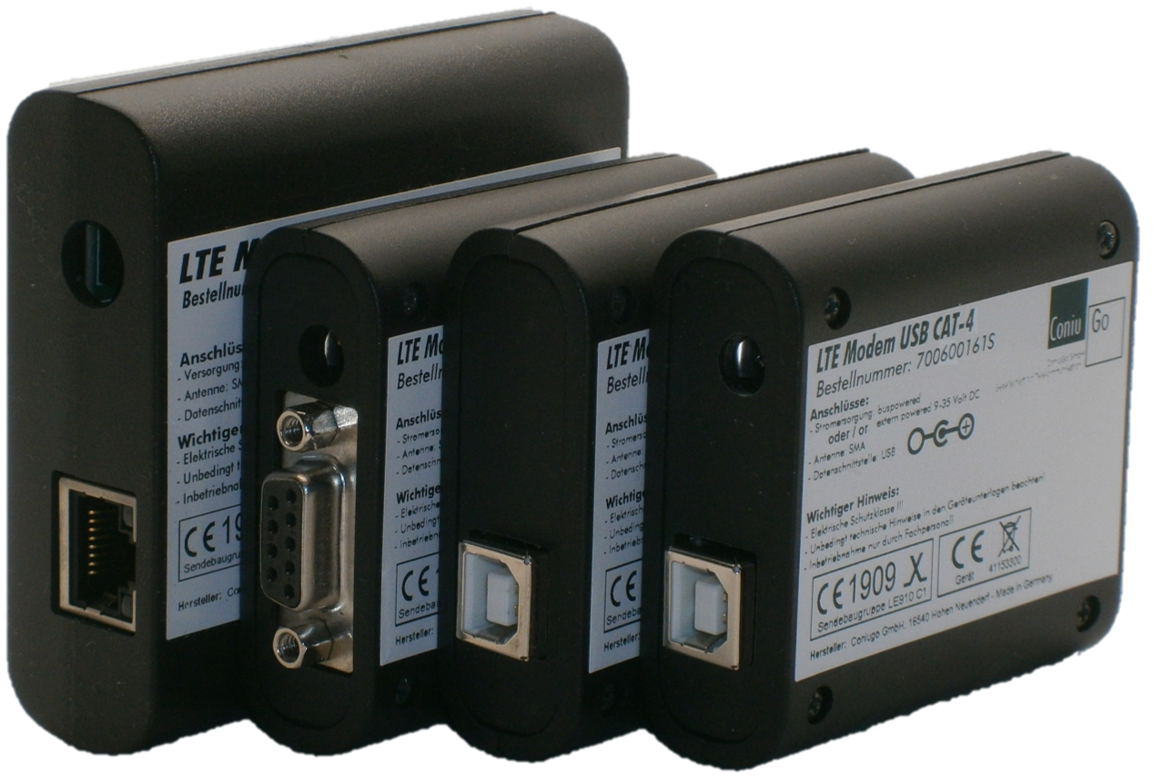

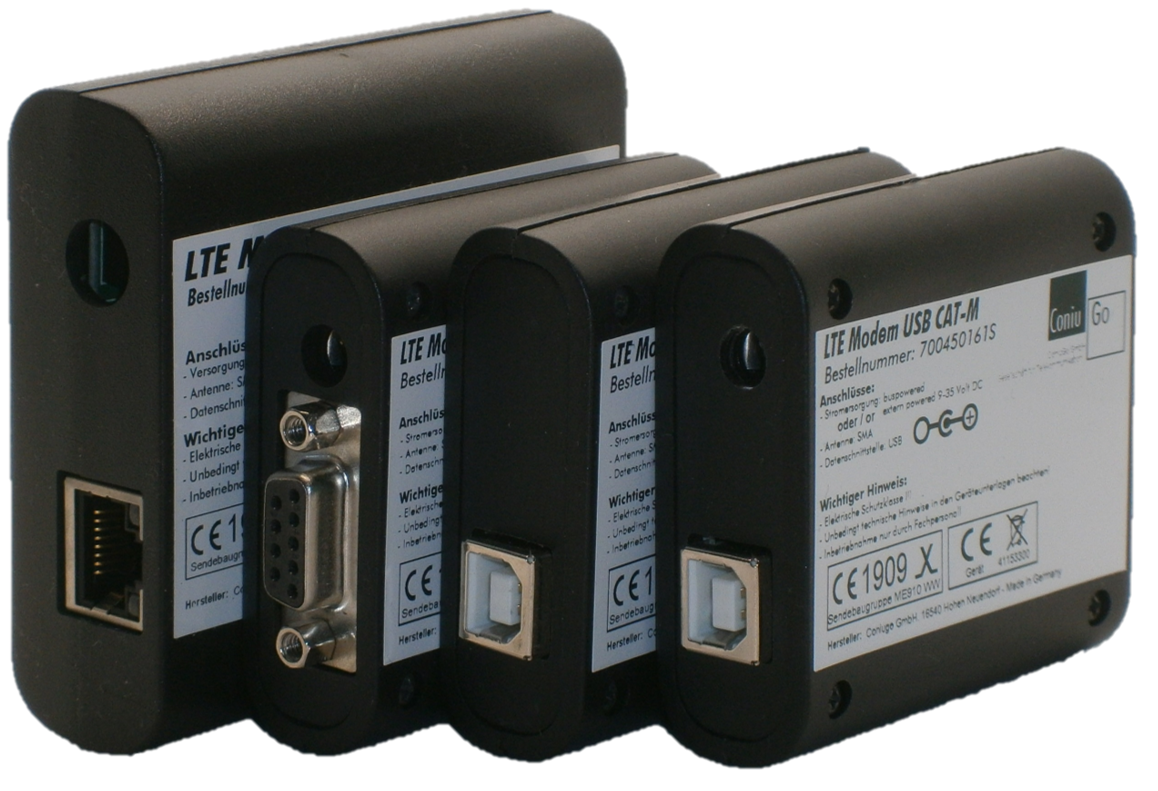

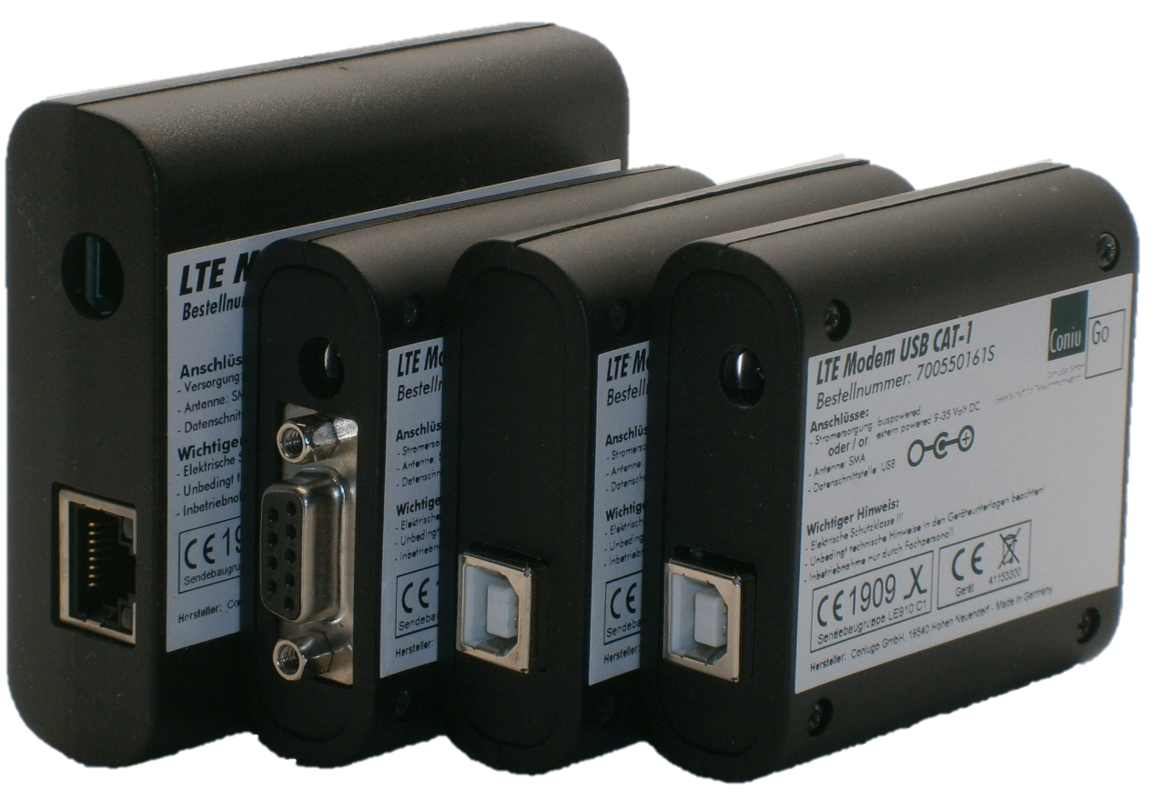

LTE Modem

Technical features:

  • Frequenzy 850 + 900 + 1800 +1900 + 2100 + 2600 Mhz
  • Data rate LTE: 100 Mbps Down (LTE), 50 Mbps Up, HSPA+: 42.0 Mbps Down, 5.76 Mbps Up
  • Power supply 9-35 V DC (LAN, RS232), BUS powered (USB)
  • Antenna plug SMA
  • LAN/Ethernet interface, Order no. 700600170S
  • USB interface, Order no. 700600160S
  • RS232 interface, Order no. 700600150S
  • Standard housing
  • Dimensions 62 x 59 x 20 mm (L x W x H)
  • Weight 49 g
  • LAN/Ethernet interface, Order no. 700600270S
  • USB interface, Order no. 700600260S
  • RS232 interface, Order no. 700600250S

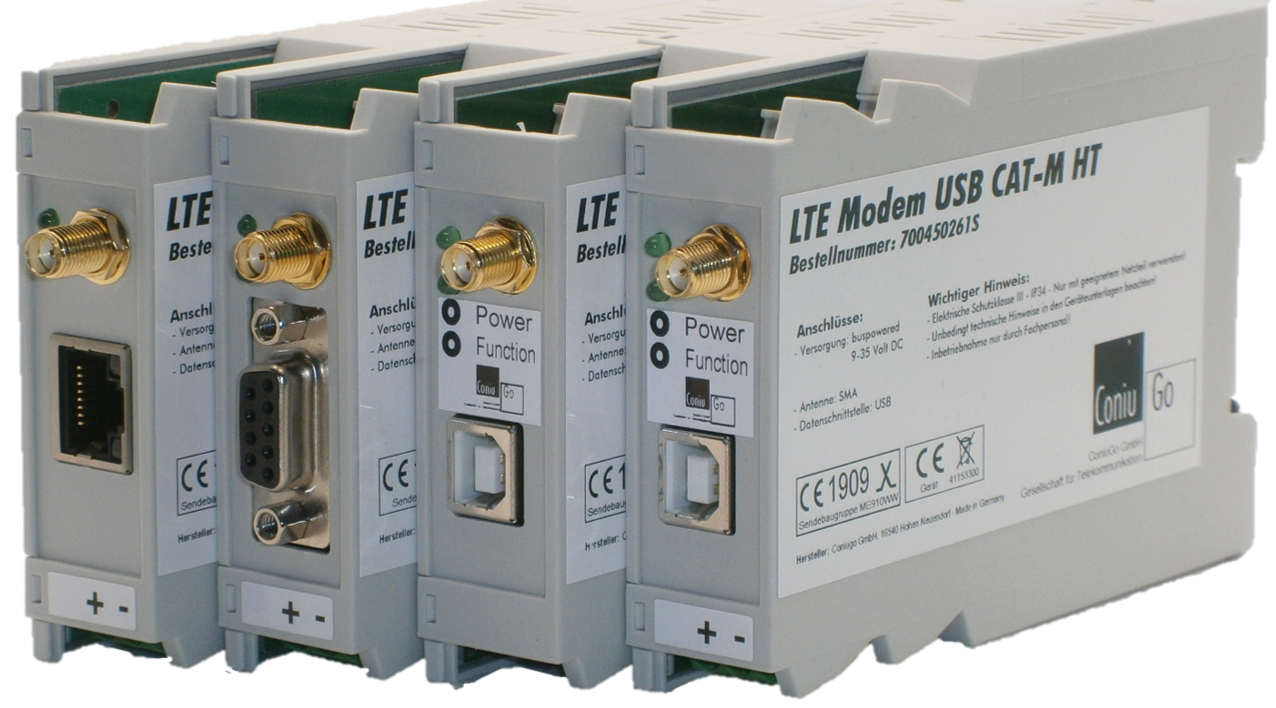

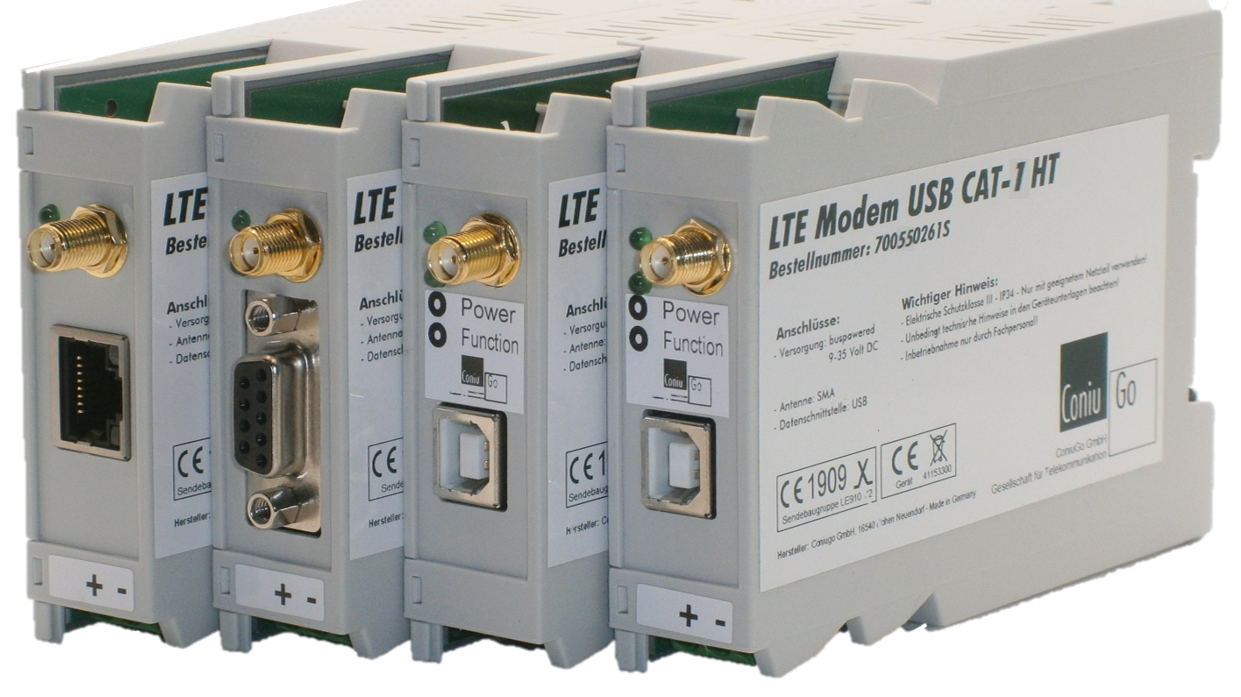

  • DIN rail mounting
  • Dimensions 75 x 22 x 112 mm (L x W x H)
  • Weight 92 g



You need M2M SIM-Cards, fixed IP-adresses or would like to use VPN?
Just contact us!
